Aluminum coil on a yellow uncoiler arm at the start of a green processing line

Aluminum coil slitting and cut-to-length.

Coil finishing to your line: slitting, cut-to-length, edge trimming, leveling, lubrication, and protective film.

Service

Processing services.

What each service does
SlittingNarrows wide coil into precise strip widths for your line
Cut-to-lengthProduces flat sheets to a specified length
Edge trimmingCleans and squares coil edges
LevelingImproves flatness for downstream forming and coating
EmbossingApplies stucco texture (see stucco / embossed)
Lubrication / protective filmProtects surface through forming, handling and transit
Coil we process
Alloy series1xxx, 3xxx, 5xxx
Thickness0.20 – 2.00 mm
Coil widthUp to 1650 mm
Coil inner diameter406 – 508 mm
Maximum coil weightUp to 10 tonnes
Slit widths and cut lengthsTo your line (confirmed per order)
TolerancesAvailable on request

Exact tolerances and width capabilities are confirmed per order, share your line requirements in your RFQ.

Used in: Rolling shutters · Signage · License plates

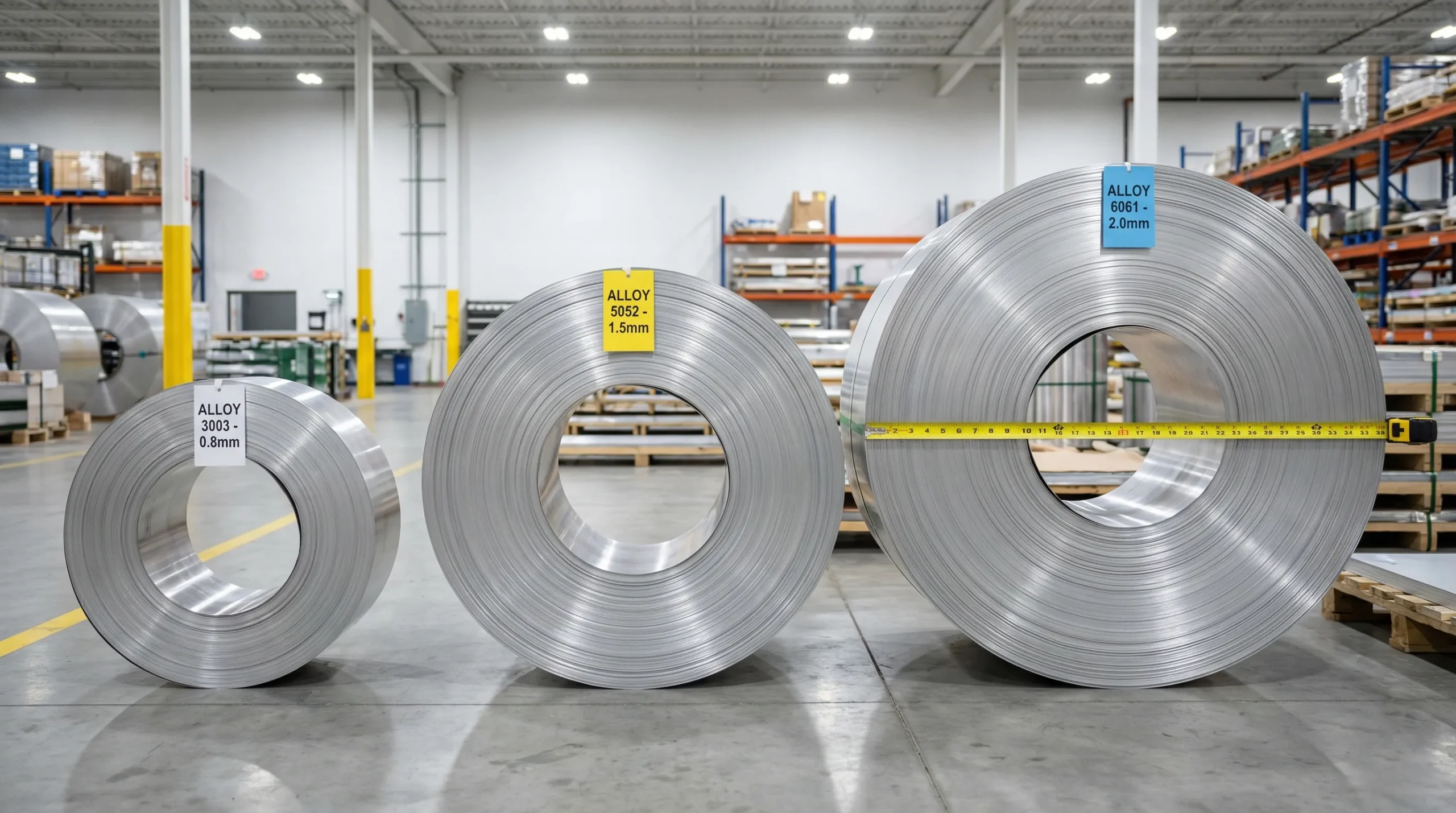

Aluminum slit coil from a master coil

Aluminum slit coil is a wide master coil divided into narrower strips on a slitting line. Orbit rolls the master coil, so slitting runs from the same metal you would otherwise receive at full width. You get strip in the width your roll-former, press or blanking line needs, with edge trim and leftover width worked out before the order rather than after it.

Whether to order slit coil or a master coil depends on your line and your lot size, and the slit coil vs master coil guide sets out the trade-offs. The cut-to-length layout guide shows the yield arithmetic for flat sheet.

Tolerances

Slit coil widths and tolerances.

Strip widths and tolerances are set per order against your line. Name the width, the tolerance and any edge requirement in your RFQ.

Slit coil widths and tolerances
Slit strip widthTo your line, available on request
Width toleranceAvailable on request
Edge condition, burr and camber limitsAvailable on request
Master coil widthRolled up to 1650 mm, coated up to 1350 mm
Thickness0.20 – 2.00 mm
Coil inner diameter406 – 508 mm
Maximum coil weightUp to 10 tonnes
Alloy series1xxx, 3xxx, 5xxx
A metal coil unwinding into green and yellow machinery with blue hydraulic cylinders

Finished in-house.

Finishing runs alongside rolling and coating. Coil ships in the form and condition you specify.

Packaging & handling

Coil finishing services

  • Slitting divides a wide master coil into precise narrower strips; accurate slit width and clean, burr-free edges are essential for downstream roll-forming and stamping.
  • Cut-to-length converts coil into flat sheets at a set length, with leveling to control flatness.

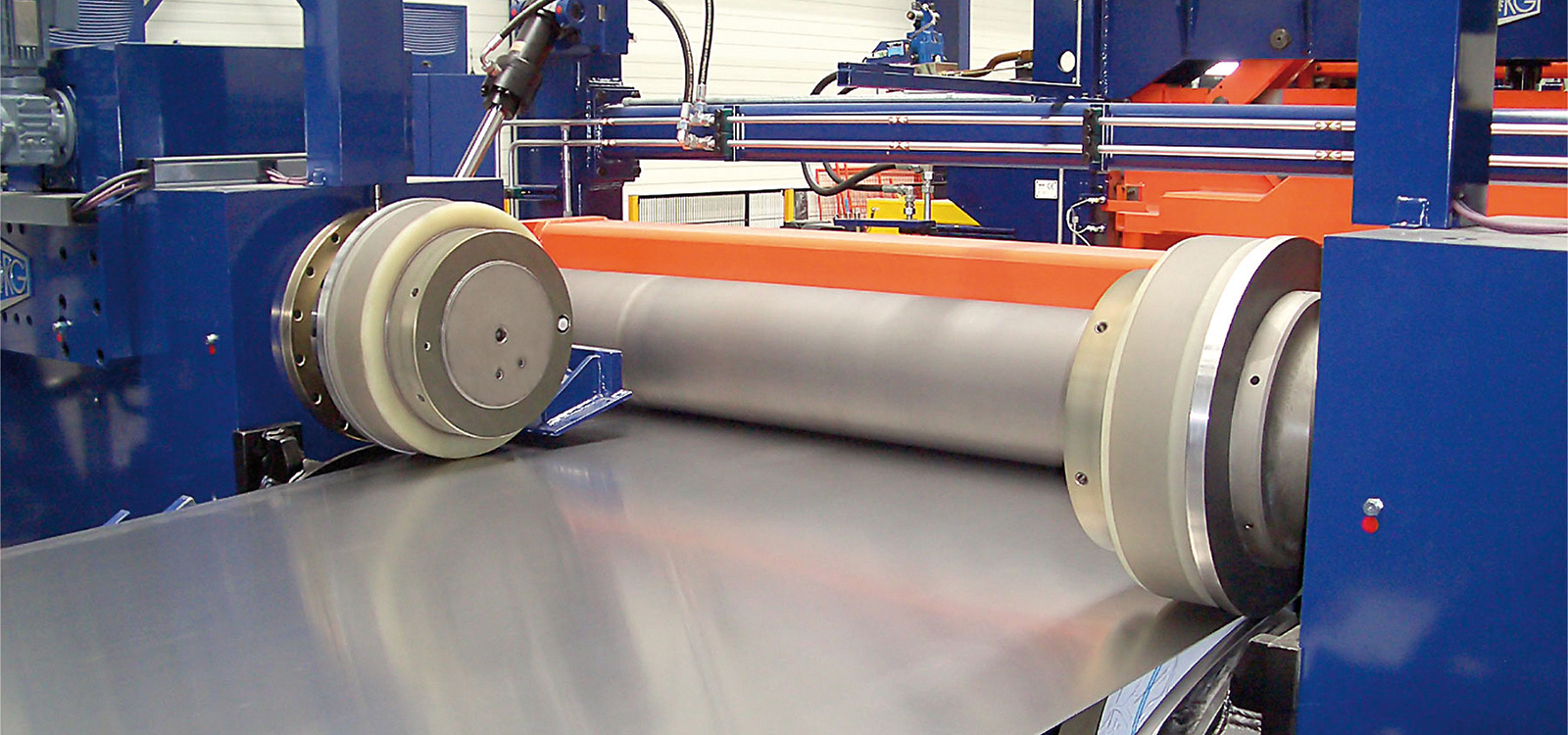

  • Edge trimming squares and cleans coil edges, important for forming and for safe handling.
  • Leveling removes coil set and shape defects so the strip lies flat, critical for ACP lamination, signage and any visible flat application.
  • Lubrication and protective film guard the surface through forming and transit.

These run in-house alongside rolling and coating. Exact slit-width and length tolerances are confirmed per order; share your line requirements in an RFQ.

Processing questions.

Does Orbit slit coil to custom widths?

Yes. Orbit slits wide master coil into the strip widths your line needs, with slit-width tolerances confirmed per order.

Can you supply flat sheets instead of coil?

Yes. The cut-to-length service converts coil into flat sheets at a specified length, with leveling to control flatness.

Can coil arrive with protective film?

Yes. Protective film and lubrication are available to guard the surface through forming, handling and transit.

What coil can Orbit process?

Orbit processes 1xxx, 3xxx and 5xxx coil from 0.20 to 2.00 mm thick and up to 1650 mm wide, with coil inner diameter 406 to 508 mm and weights up to 10 tonnes.

Do you offer edge trimming and leveling?

Yes. Edge trimming squares and cleans the coil edges, and leveling removes coil set so the strip lies flat for forming, coating or visible flat applications.

Quality & compliance

Quality & compliance.

Certified production

Production is certified to ISO 9001 (quality), ISO 14001 (environment) and ISO 45001 (occupational health and safety).

Tested to standard

Coil is checked against ASTM or EN references by market, on tests such as salt spray, UV, T-bend, adhesion, gloss retention and color difference (delta E) for coated products.

Documentation with the batch

Material certificates accompany every batch; test reports and ASTM or EN references are available on request. See quality & certifications.

Need coil finished to size?

Send your widths, lengths and flatness, we will confirm tolerances. Include your application, substrate (aluminum or steel), alloy, gauge, width, coating, color, quantity and destination. We respond to RFQs within one business day.
