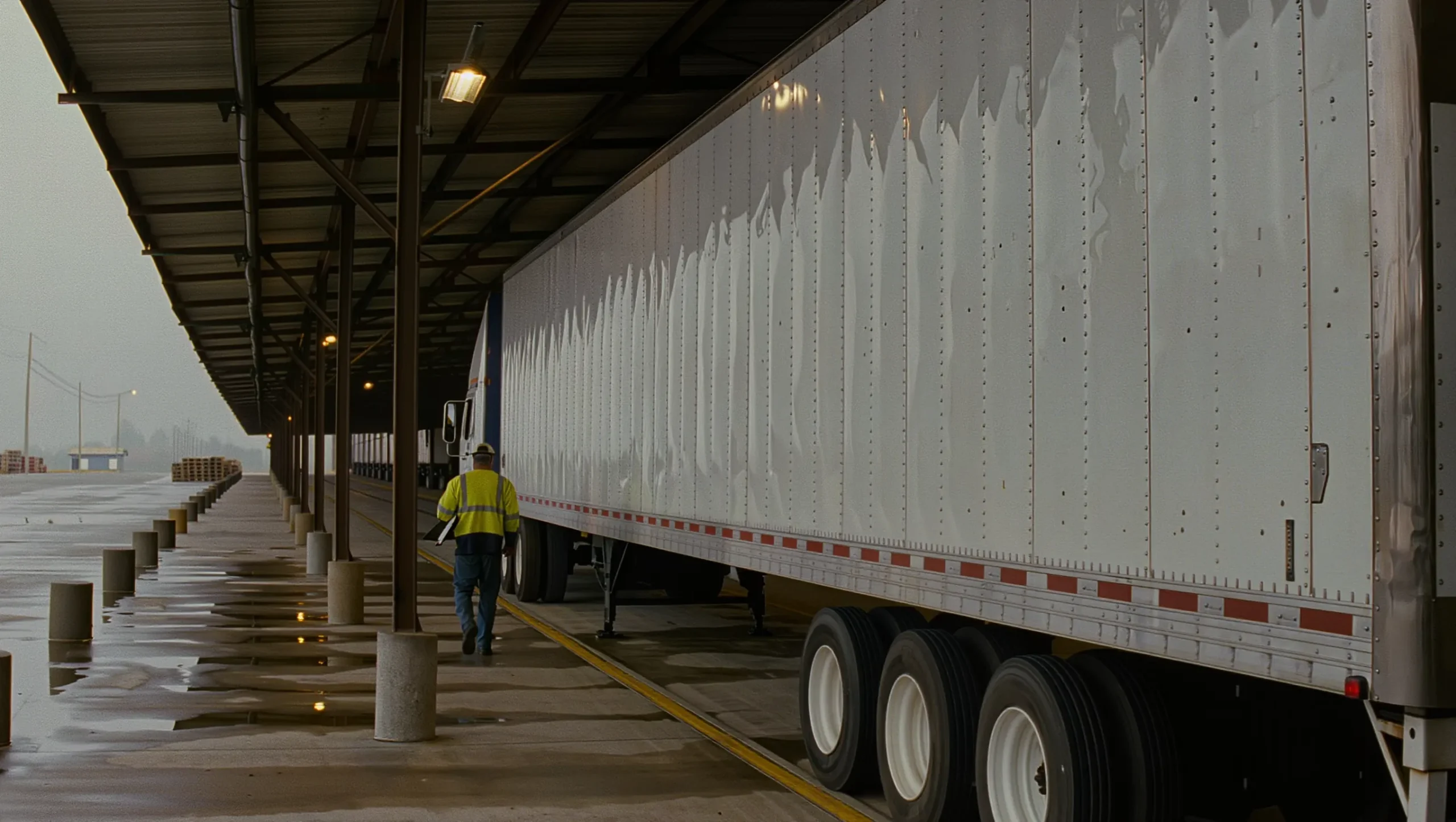

Refrigerated truck trailer side panel at a loading dock

Alloy 5xxx · Coating on request

Aluminum trailer sheet and coil for truck and trailer panels.

Aluminum trailer sheet for truck bodies, dry vans and reefers, supplied as wide coil or flat sheet. Coating systems chosen for wash and road exposure are available on request, in any RAL color.

  • Alloy 5xxx
  • Coating on request
  • Coil up to 1650 mm wide

Application

Wide format, durable finish.

Wide coil with coating systems chosen for wash and road exposure, available on request; durability depends on the system and conditions.

Coating on requestCoil up to 1650 mm wideReefer & dry-vanFleet livery colors

Related applications: License plates · ACP

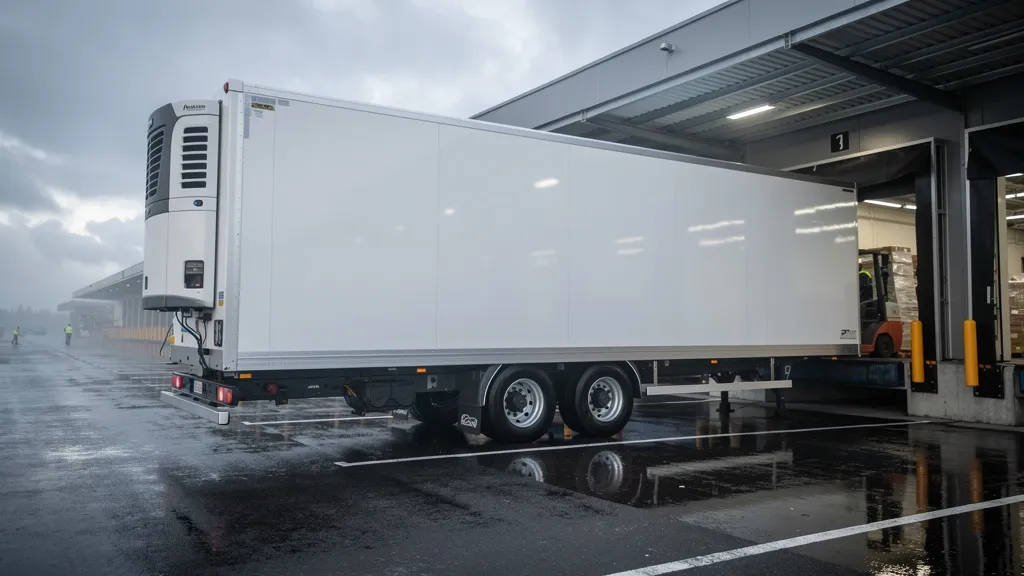

Refrigerated truck trailer docked at a warehouse in the rain

Wash bay and road exposure.

Coating systems chosen for wash and road exposure are available on request; durability depends on the system and conditions.

Prepainted aluminum coil

Coil specification.

Indicative ranges, panel gauge and width confirmed per order
CoatingsAvailable on request
Thickness0.20 to 2.00 mm rolled; up to 1.60 mm coated (panel gauge on request)
WidthUp to 1650 mm (coating up to 1350 mm)
Coil weightUp to 10 tonnes
Minimum order6.5 MT (±10%)
ColorRAL or custom fleet livery (available)
Warranty5 to 20 years by application and environment

Guidance

Recommended specification.

A typical starting point for truck and trailer panel coil.

Recommended specification
Alloy5xxx (higher strength)
CoatingAvailable on request
Colorsolid colors incl. white and fleet colors
ThicknessThickness is set by your specification and confirmed per order; Orbit rolls 0.20 to 2.00 mm, coated up to 1.60 mm. Gauge numbers convert to mm on the gauge to mm chart.
TestingCoated coil can be tested for impact and MEK rub; test reports for a given order are available on request.

Exact alloy, gauge and coating are confirmed per order, share your spec in an RFQ.

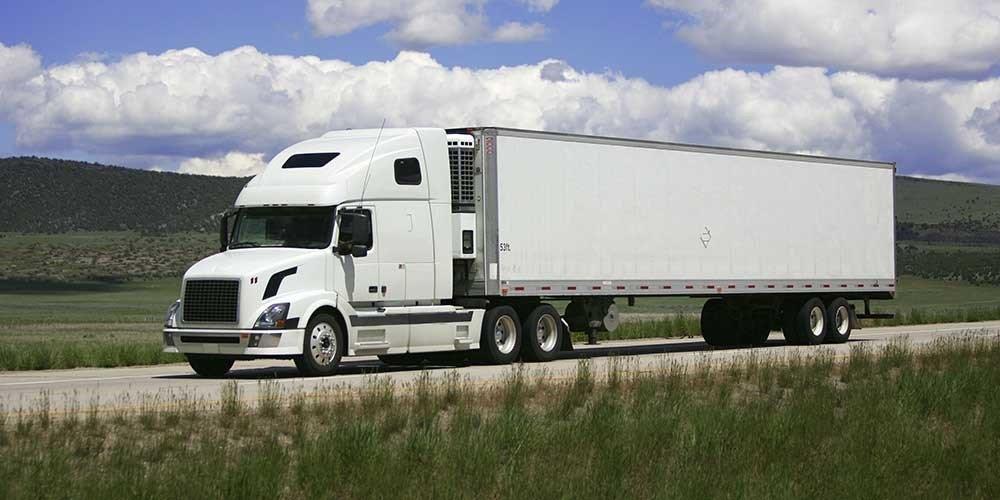

What aluminum trailer sheet has to handle

Truck and trailer panels need strength-to-weight, corrosion resistance, and a finish that survives road exposure, washing and weather while keeping fleet livery consistent across large panel areas.

5xxx alloys generally give higher strength than 1xxx or 3xxx at the same gauge; the coating system is selected for paint toughness and the flexibility needed for forming. Wide coil reduces the number of seams on a panelled side.

The exposure is different from a building facade. A trailer side takes road salt, washdown chemicals and stone strikes as part of normal service, so the coating is chosen for mechanical wear as well as weathering. The post on painted coil for truck and trailer panels walks through that choice in more detail.

Trailer skin sheet from coil

Aluminum trailer skin sheet is normally cut from coil. Orbit casts, rolls and, where the order calls for it, coats the strip as a continuous coil. The coil is then slit to the panel width and run through a cut-to-length line, which flattens the strip and shears it into flat sheets. Both steps run in house, so trailer skin sheets can ship flat and ready for fabrication, or as coil for body builders who cut on their own line. See slitting and cut-to-length for how the processing works.

Alloy series fit

Orbit rolls 1xxx, 3xxx and 5xxx alloys. In general terms, 5xxx (aluminum-magnesium) gives the highest strength of the three and good corrosion resistance, which is why it is the starting point for structural sides and exposed skins; 3xxx is also used for prepainted skins. 3xxx (aluminum-manganese) is lower in strength but forms easily, which can suit lightly loaded panels, liners or trim. 1xxx is the softest series and is usually too soft for a load-bearing skin. The alloy series guide explains what the numbers mean. Alloy and temper are confirmed per order against your body design.

Prepainted or mill finish

Prepainted aluminum sheet for trailers arrives with the finish already cured on the coating line, so the body builder skips a paint stage and gets consistent color across panels from the same run. Mill finish suits builders who paint after assembly, apply a full livery wrap, or leave the skin natural. For bare stock, start from mill-finish aluminum coil.

How to order aluminum trailer sheet metal
ItemWhat to state
FormCoil, slit coil or flat cut-to-length sheet
WidthPanel or sheet width; up to 1650 mm mill, 1350 mm coated
LengthSheet length for cut sheet, confirmed per order
GaugeThickness in mm within 0.20 to 2.00 mm rolled, up to 1.60 mm coated; specific values on request
Alloy and temper5xxx or 3xxx, temper if known
FinishMill finish, or coating system and color, and which side is the exterior face

For enclosed trailer aluminum sheets, state the exterior color and whether the reverse face needs a coating, because the inside of the skin may be visible or bonded to a liner. Exact widths, lengths and gauges for trailer work are quoted against your drawing rather than published as a standard list.

Quality & compliance

Testing and documentation.

Certified management systems

Orbit's management systems are certified to ISO 9001 (quality), ISO 14001 (environment) and ISO 45001 (occupational health and safety).

Tests that matter here

Coated coil can be tested for impact resistance, MEK rub (cure), salt spray and adhesion; test reports for a given order are available on request. See quality & certifications for how this is documented.

Documentation with the batch

Material certificates accompany every batch; ASTM and EN references are available on request.

Truck & trailer questions.

What aluminum is used for trailer panels?

Trailer panels use coated aluminum coil, durable and corrosion-resistant, in any RAL color.

Can you supply wide coil for large panels?

Yes. Orbit supplies wide coil for large panels, within our maximum coil widths.

Can you supply trailer sheet cut to length?

Yes. Orbit slits and cuts to length in house, so trailer sheet can ship as flat sheet or as coil. Sheet width and length are confirmed per order.

Prepainted or mill finish for trailer skins?

Both are available. Prepainted skips a paint stage at the body builder; mill finish suits builders who paint after assembly, wrap the trailer or leave it natural.

Can you match fleet colors?

Yes. Orbit matches any RAL or custom fleet color.

What thickness is typical for truck and trailer panels?

Thickness is set by your specification and confirmed per order; Orbit rolls 0.20 to 2.00 mm, coated up to 1.60 mm.

What is the minimum order?

The minimum order is 6.5 MT, plus or minus 10 percent.

What to send with your RFQ.

Include these and we can return a coil specification and quote without back-and-forth.

  • Application and substrate (aluminum or steel)
  • Alloy and temper, if known
  • Gauge and coil width
  • Coating system and color (a RAL number or a sample)
  • Quantity and destination port

Our technical office reviews every RFQ and replies with a specification and quote. We respond to RFQs within one business day.

Building trailer bodies?

Send your panel width, gauge and livery color, we will match the coating. Include your application, substrate (aluminum or steel), alloy, gauge, width, coating, color, quantity and destination. We respond to RFQs within one business day.
