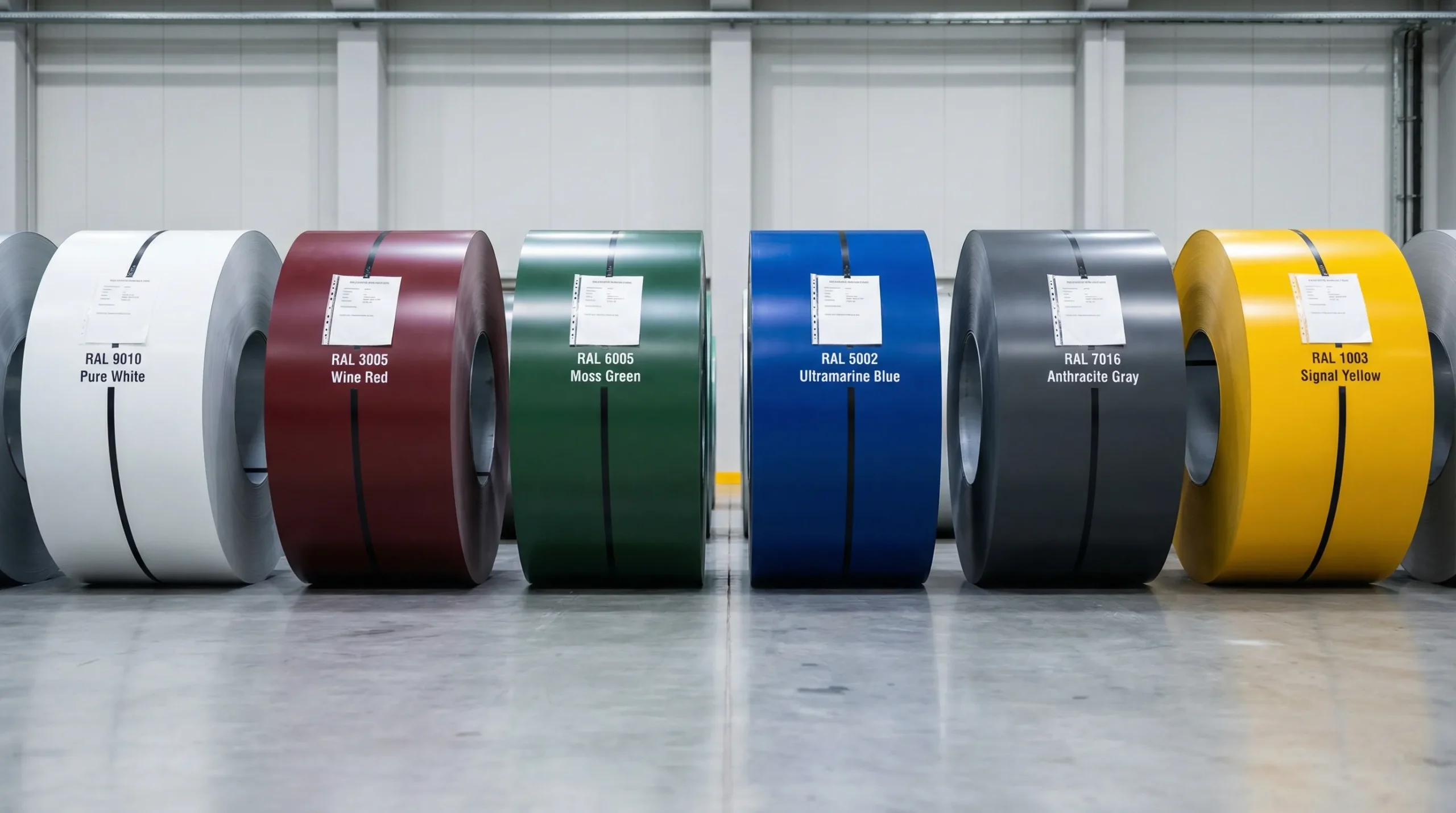

Prepainted aluminum coils color-matched to RAL references

Prepainted aluminum coil in PVDF, HDPE and PE, any RAL color.

Color-coated aluminum coil in PVDF, PE, HDPE, PUPA, epoxy, and acrylic systems, any RAL or custom match, up to 1350 mm wide and 1.60 mm thick.

Product

Color and finish.

RAL or custom match. Finishes: solid, metallic, woodgrain, brushed, matte or gloss, and textured. Coated one-side or two-side with primer, protective film available.

Coated coil capability
SubstratesAluminum
Alloy series1xxx, 3xxx, 5xxx
Coating systemsPE, HDPE, PVDF, PU, PUPA, Epoxy, Acrylic, Epoxy-PE
FinishesSolid, metallic, woodgrain, brushed, matte/gloss, textured
Maximum width1350 mm
Maximum thickness1.60 mm
Coating sidesOne-side, or two-side with primer
ColorAny RAL or custom match
Protective filmAvailable
Coil inner diameter406 – 508 mm
Maximum coil weightUp to 10 tonnes
TemperAvailable on request
MOQ per colorTypically 6 MT (3 MT possible as part of an order)

Orbit is a painted aluminum coil supplier that coats on site in Aqaba. You may also see this product called pre-painted aluminum coil or trim coil, and outside North America it is often written aluminium coil. Need steel substrate? See prepainted steel coil.

Recycled-content coil. Available on select alloys, traceable to the cast batch and confirmed per order. 3105 + PUPA, roughly 75%, per order. Send your specification in the RFQ. Recycled content

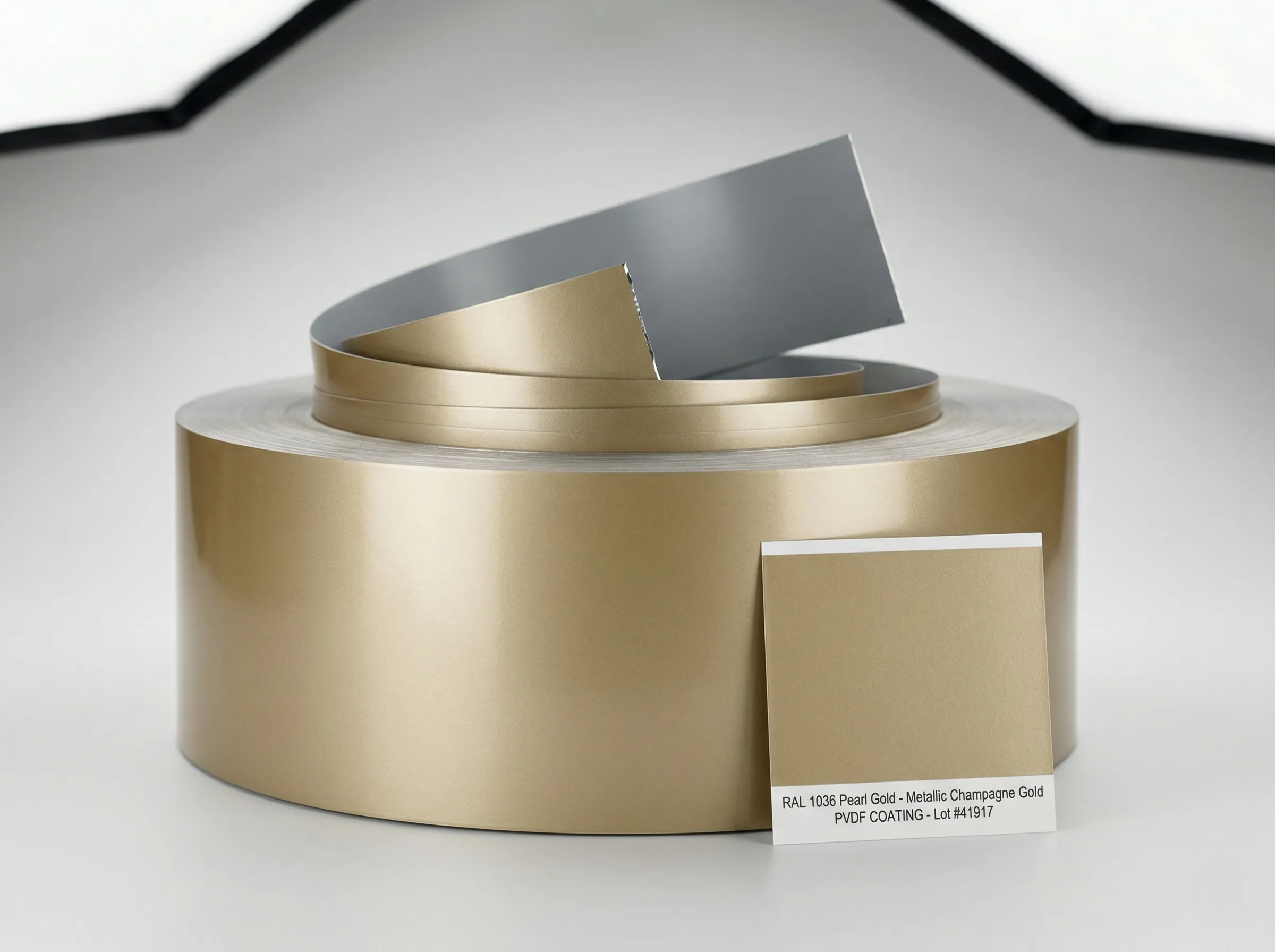

Pearl gold PVDF coated aluminum coil sample

Coating systems.

The coating system determines how the coil handles UV, weather, and wear.

Compare coating systems

Applications.

Painted coils go into rolling shutters, roofing, cladding, gutters, and signage. In North American gutter, roofing, and fascia work, the same product is sold as trim coil.

Coating systems

Color coated aluminum coil: choosing a system.

The topcoat decides how color coated aluminum coil holds up to sun, weather and forming. Any system below runs in any RAL or custom color.

Coating systems for prepainted aluminum coil
SystemWhere it fits
PVDFFacades, cladding and coastal or harsh exposure. Holds color and gloss through strong UV.
PUPAHigh-flex forming and high-wear uses such as rolling shutters. Tough, abrasion-resistant film.
HDPEGeneral exterior construction, inland or moderate exposure. Weathers better than standard PE.
PEInteriors, signage and milder exposure. Cost-effective with a wide color range.
PUGood flexibility and abrasion resistance where moderate exterior performance is enough.
Epoxy and Epoxy-PEAdhesion and corrosion protection. Epoxy has poor UV stability, so it is used as a primer or for interior and back-coat work.
AcrylicInterior and low-UV applications.

Coil is coated one-side, or two-side with primer, in solid, metallic, woodgrain, brushed, matte, gloss and textured finishes. Anti-graffiti and anti-bacterial coatings are available as functional coatings. The full comparison is on the coating systems page.

Painted aluminum coils for roll forming

Painted aluminum coils are formed after coating, so the paint has to bend with the metal. That is why alloy, temper and coating are chosen together: a high-flex system such as PUPA for tight profiles, PVDF where color retention matters most. Orbit rolls the base metal and coats it on the same site, which keeps alloy, gauge and coating under one set of checks.

  • Aluminum roof coil: standing seam, corrugated and panel profiles, with coating chosen by exposure.
  • Gutters and downspouts: coil sold in North America as trim coil, in any RAL color.
  • Cladding: PVDF-coated coil in architectural colors and metallic finishes.
  • Rolling shutters: slats that bend repeatedly without cracking.

For coil you coat yourself, or for forming trials before you order color, start with mill-finish aluminum coil. When you shortlist painted aluminum coil suppliers, ask each one for the coating system, the substrate alloy and the standard the coil is tested to, in writing.

How prepainted coil is made

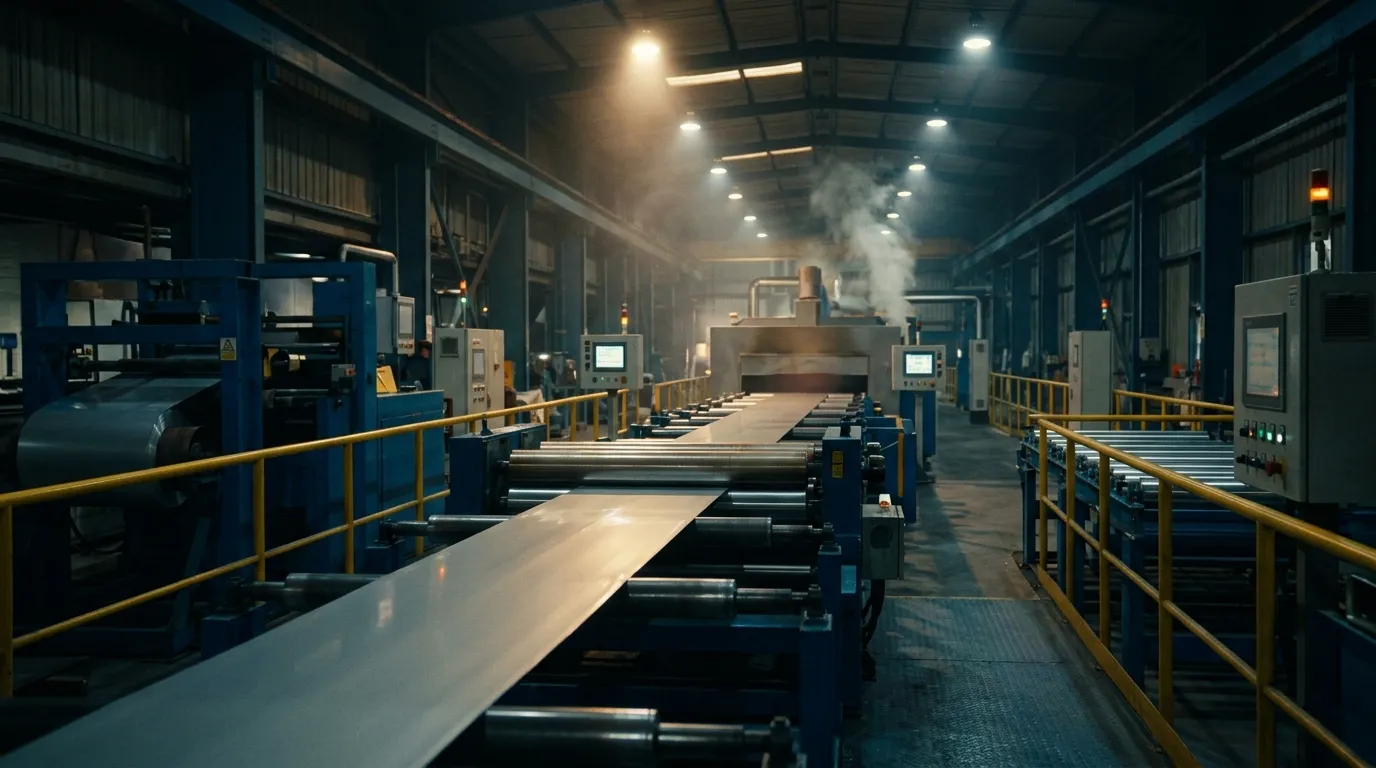

Prepainted, or pre-coated, coil is produced on a continuous coil-coating line, a fundamentally different and more consistent process than spraying or powder-coating finished parts. The strip is unwound and runs continuously through cleaning and pretreatment, a chemical conversion coating for adhesion and corrosion protection, a primer coat, then one or more topcoats, each cured in line before the coil is rewound.

Because paint is applied to flat strip under controlled tension, temperature and film thickness, coil coating delivers far more uniform film build and color consistency than post-forming finishing, and the coil can then be formed, since quality coatings are engineered to bend with the metal. This is why it is specified for high-volume manufacturing: the finish is consistent across the whole coil and from batch to batch, and the manufacturer skips a finishing step entirely.

What defines a coated-coil spec

A complete coated-coil specification answers several questions at once. Use this as a checklist when preparing an RFQ.

  • Substrate and alloy: aluminum (or steel), and the alloy series suited to forming and end use.
  • Gauge and width: thickness and coil width, within Orbit's coated range of up to 1.60 mm thick and 1350 mm wide.
  • Coating system: the resin family (PE, HDPE, PVDF, PUPA and others), chosen by environment, see coating systems.
  • Color and finish: any RAL or custom color; solid, metallic, woodgrain, brushed, matte/gloss or textured.
  • Coating configuration: one-side, or two-side with primer; protective film if required for handling.
  • Performance expectations: the environment and service life, which drive coating choice and warranty.

Finishes.

Solid

Uniform single color, the construction standard.

Metallic

Pigments that create a metallic sheen and depth, common in architectural facades.

Woodgrain

Printed grain patterns for a timber appearance with aluminum's durability.

Brushed

A directional brushed texture for a refined metal look.

Matte / gloss

Gloss level tuned to the design, from low-glare matte to high gloss.

Textured

Surface textures that mask handling marks and add visual interest.

Color is matched to RAL or to a custom reference; provide a sample and matching is confirmed at quote stage.

Prepainted coil questions.

Is prepainted aluminum coil the same as aluminum trim coil?

Yes. In North America, prepainted, color-coated aluminum coil for gutters, fascia, roofing and trim is commonly called aluminum trim coil. Orbit supplies it in any RAL or custom color, in the gauges and widths listed.

What colors can Orbit match?

Orbit matches any RAL color or a custom reference. Provide a sample and the match is confirmed at quote stage.

What's the minimum order per color?

The minimum is typically 6 MT per color, and 3 MT may be possible as part of a larger order.

Can coil be coated on both sides?

Yes. Coil can be coated one-side, or two-side with primer.

What's the maximum width and thickness for coated coil?

Coated coil is available up to 1350 mm wide and 1.60 mm thick.

Is protective film available?

Yes. Protective film is available for handling and storage.

Which coating system should I choose?

Choose by exposure. PVDF suits facades and coastal or harsh sites, PUPA suits high-flex forming such as shutters, HDPE suits general exterior use and PE suits interiors and milder exposure. Share your site and profile in an RFQ and Orbit recommends the system.

What warranty applies to prepainted aluminum coil?

Warranty runs from 5 to 20 years depending on the application and environment. Terms are confirmed per order.

Is recycled-content prepainted coil available?

About 75 percent recycled content is achievable on select coated coil, for example 3105 with PUPA. It is confirmed per order and traceable to the cast batch.

Shipping and lead times

Coil ships from the port of Aqaba, Jordan. Transit to Europe is 5 to 13 days port to port, and to the USA around 25 days. Other destinations are quoted per port. Production lead time is quoted per order, a certificate of origin is available, and Orbit replies to an RFQ within one business day.

Quality & compliance

Quality & compliance.

Certified production

Production is certified to ISO 9001 (quality), ISO 14001 (environment) and ISO 45001 (occupational health and safety).

Tested to standard

Coil is checked against ASTM or EN references by market, on tests such as salt spray, UV, T-bend, adhesion, gloss retention and color difference (delta E) for coated products.

Documentation with the batch

Material certificates accompany every batch; test reports and ASTM or EN references are available on request. See quality & certifications.

Need prepainted aluminum coil in a specific color?

Send your color reference and application, we will match the system. Include your application, substrate (aluminum or steel), alloy, gauge, width, coating, color, quantity and destination. We respond to RFQs within one business day.
