Roller shutter coil specified for the slat bend.
Roller shutter coil in 3xxx aluminum, coated in durable systems and any RAL color, for slats that are roll-formed once and then cycled daily outdoors.
- Alloy 3xxx
- PUPA / PVDF
- Up to 1350 mm coated
- RAL or custom color
Application
Coating for the roll-former.
Shutter slats are roll-formed into tight profiles after coating, so the paint film has to flex without crazing.

Outdoor color retention.
We match your reference and supply coil slit to the widths your slat line runs.
Prepainted aluminum coilCoil specification.
| Coatings | PUPA, PVDF, HDPE, PE |
|---|---|
| Thickness | 0.20 to 2.00 mm rolled; up to 1.60 mm coated (slat gauge on request) |
| Width | Up to 1650 mm (coating up to 1350 mm) |
| Coil weight | Up to 10 tonnes |
| Minimum order | 6.5 MT (±10%) |
| Color | RAL or custom match (available) |
| Warranty | 5 to 20 years by application and environment |
Buyer guidance
Recommended specification.
A starting point for shutter slat coil. Treat these as guidance, not a fixed datasheet.
| Alloy | 3xxx |
|---|---|
| Coating | PUPA or PVDF |
| Color | Solid colors, full RAL |
Exact alloy, gauge and coating are confirmed per order, share your spec in an RFQ.
Designing for daily cycling
Shutter slats are roll-formed and then cycled daily for years, so the coil must form cleanly into the slat profile, hold color under constant UV, and resist abrasion where slats meet and where the curtain rolls. Aluminum's light weight eases operation and reduces load on motors and springs. The coating should be checked for flexibility (T-bend) and abrasion resistance against the slat profile.

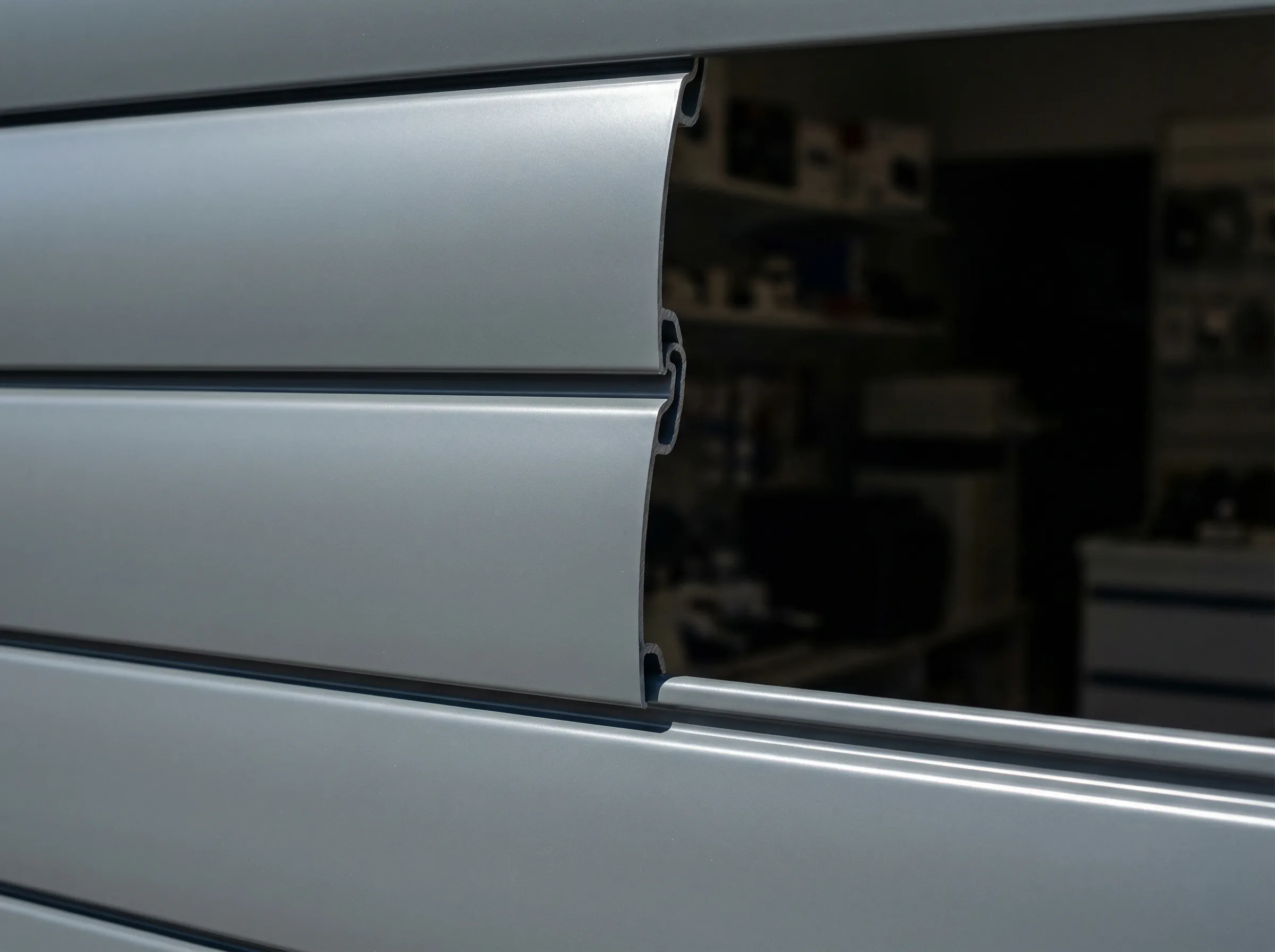

A roller shutter curtain is a chain of interlocking slats, so a small variation in the coil shows up as a slat that binds or does not lock, not only as a cosmetic flaw. Consistent gauge and temper along the full coil length matter as much as the coating. Orbit slits in house, and the strip is cut to the width your slat roll-former runs; see slitting and cut-to-length for how it is processed.
Which alloy suits roller shutter coil?
3xxx is the starting point. The aluminum-manganese series combines good formability for a tight, repetitive slat profile with corrosion resistance suited to exterior use. Orbit also rolls 5xxx, which gives more strength and suits harsher sites, such as coastal shopfronts, at some cost in formability. 1xxx is the most formable of the three but the lowest in strength, which limits it for slats that have to resist denting. The shutter coil alloy and coating guide covers how temper interacts with the slat profile. Alloy, temper and gauge are confirmed per order against your profile drawing.
Coating systems for aluminum shutter slats
The coating has two jobs: survive the bend at the slat lock without crazing, and hold color in daily sun. Check the slat's tightest bend against the coating's flexibility before the color is finalized, because a system that performs well on a flat panel can craze at a tight, repeated fold.
| System | Shutter use |
|---|---|
| PUPA | Recommended for slats: polyurethane-family coating specified for flexibility and abrasion resistance in roll-formed slats; confirm values on the paint system data sheet |
| PVDF | Recommended where color and gloss retention under strong UV matter most; confirm flexibility against the profile |
| HDPE | General exterior shutters, moderate exposure |
| PE | Sheltered or interior shutters, milder exposure |
Finishes and color
Slat coil is available in solid, metallic, woodgrain, textured and matte finishes, matched to a RAL number or a custom sample. Anti-graffiti finish suits street-level shop and garage shutters where paint and marker need to come off cleanly. Browse the full finish range to compare them.
Quality & compliance
Testing and documentation.
Certified management systems
Orbit's management systems are certified to ISO 9001 (quality), ISO 14001 (environment) and ISO 45001 (occupational health and safety).
Tests that matter here
Coated coil can be tested for T-bend flexibility, abrasion resistance, adhesion and UV / accelerated weathering; test reports for a given order are available on request. See quality & certifications for how this is documented.
Documentation with the batch
Material certificates accompany every batch; ASTM and EN references are available on request.
Rolling shutter questions.
What aluminum is used for rolling shutters?
Rolling shutter slats are roll-formed from coated aluminum coil, finished in durable systems like PUPA or PVDF and matched to any RAL color.
Which alloy is used for rolling shutter coil?
3xxx is the starting point for formability and exterior corrosion resistance; 5xxx is an option where more strength or a harsher site calls for it. Alloy and temper are confirmed per order.
Can you slit coil to my slat width?
Yes. Orbit slits in house to the width your slat line runs; the slit width is confirmed per order.
What's the minimum order?
The minimum order is 6.5 MT, typically 6 MT per color on coating, confirmed in your RFQ.
What thickness is typical for rolling shutters?
Orbit rolls from 0.20 to 2.00 mm, coated up to 1.60 mm; the exact shutter gauge is confirmed per order.
Mill-finish or prepainted?
Both are available: prepainted in the coatings above, or mill finish for slats that are painted after forming.
What to send with your RFQ.
Include these and we can return a coil specification and quote without back-and-forth.
- Application and substrate (aluminum or steel)
- Alloy and temper, if known
- Gauge and coil width
- Coating system and color (a RAL number or a sample)
- Quantity and destination port
Our technical office reviews every RFQ and replies with a specification and quote. We respond to RFQs within one business day.
Specifying coil for a shutter line?
Send your slat gauge, width and color, we will quote the right coating. Include your application, substrate (aluminum or steel), alloy, gauge, width, coating, color, quantity and destination. We respond to RFQs within one business day.
