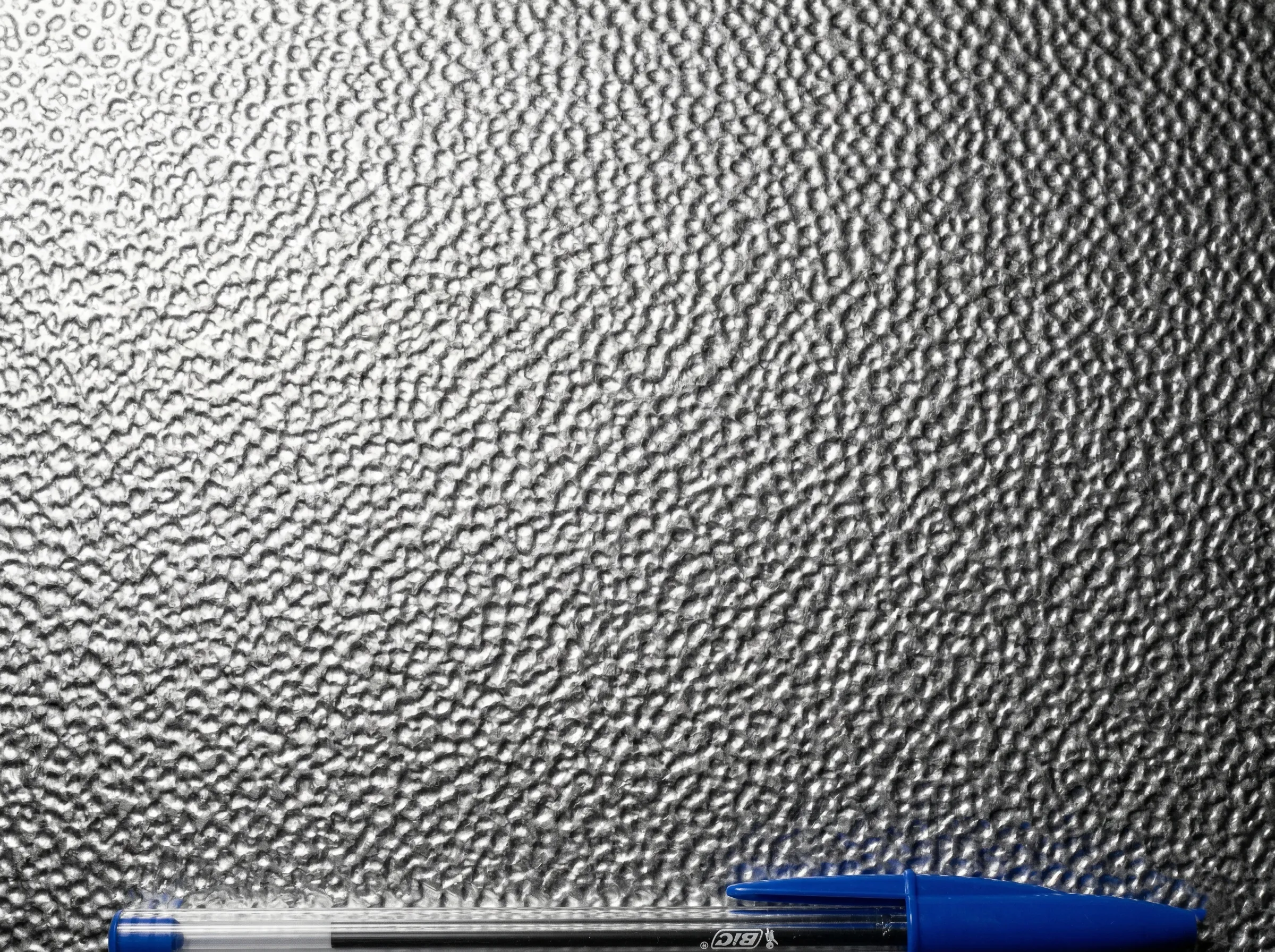

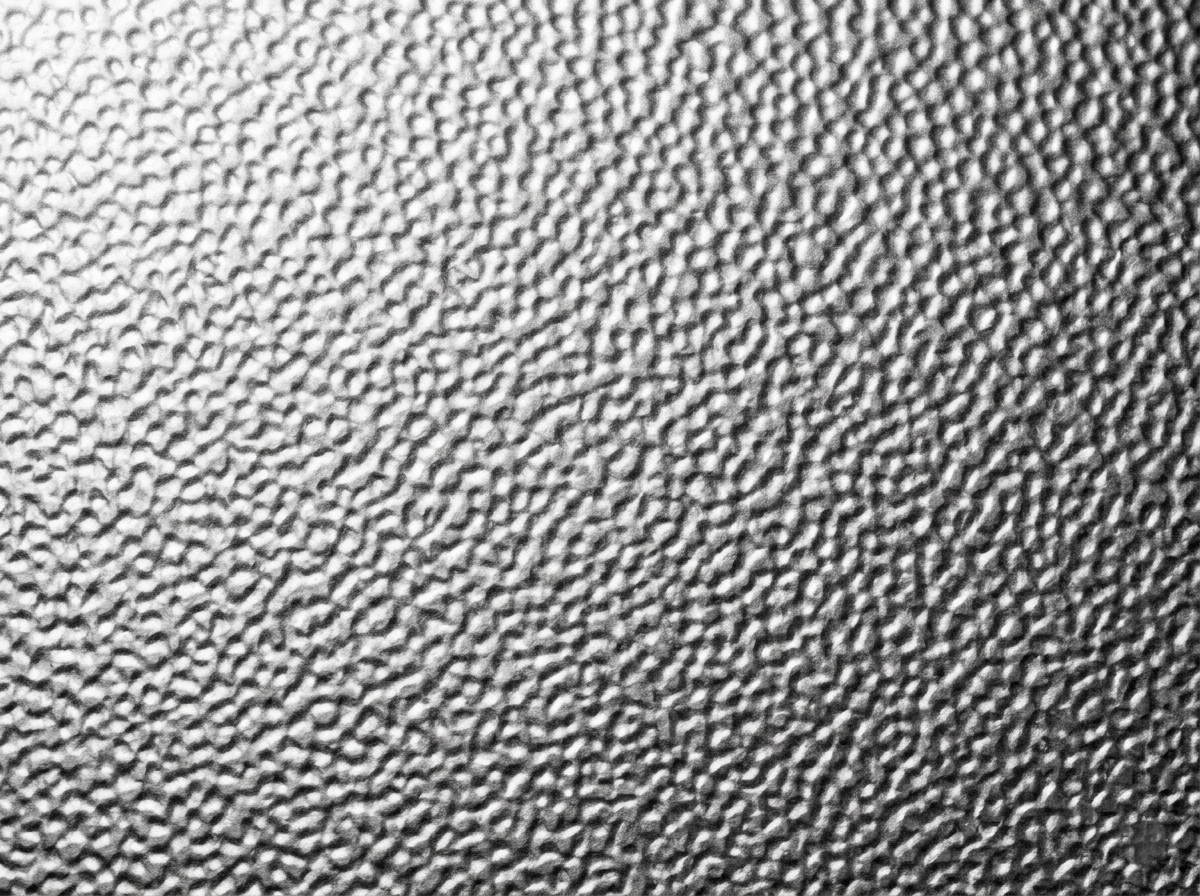

Embossed aluminum sheet and coil in a stucco pattern.
Embossed aluminum sheet and coil with the stucco pattern rolled into the metal, adding stiffness and a matte, scuff-tolerant surface. Available mill-finish or coated, supplied as coil or cut to sheet.
Product
Applications.
Common in insulation facing, appliance panels, roofing, and cladding, where a non-reflective, scuff-tolerant surface is an advantage. The pattern can add some stiffness to thin-gauge coil and visually masks oil-canning; the effect depends on pattern depth and gauge.
| Base alloys | 1xxx / 3xxx / 5xxx (see rolled aluminum coil) |
|---|---|
| Finish | Stucco embossed; available coated or mill finish |
| Coating systems | PE, HDPE, PVDF, PUPA and more (where coated) |
| Thickness | 0.20 to 2.00 mm rolled; up to 1.60 mm coated |
| Width | Up to 1650 mm (coating up to 1350 mm) |
| Coil inner diameter | 406 to 508 mm |
| Maximum coil weight | Up to 10 tonnes |
| Temper | Available on request |
| Minimum order | 6.5 MT (±10%) |
| Pattern and gauge | Confirmed per order |
Texture rolled in.
The pattern is embossed as a controlled, repeatable texture across the coil. Supplied mill-finish or with a coating applied over it.
Coating systemsEmbossed aluminum sheet and coil

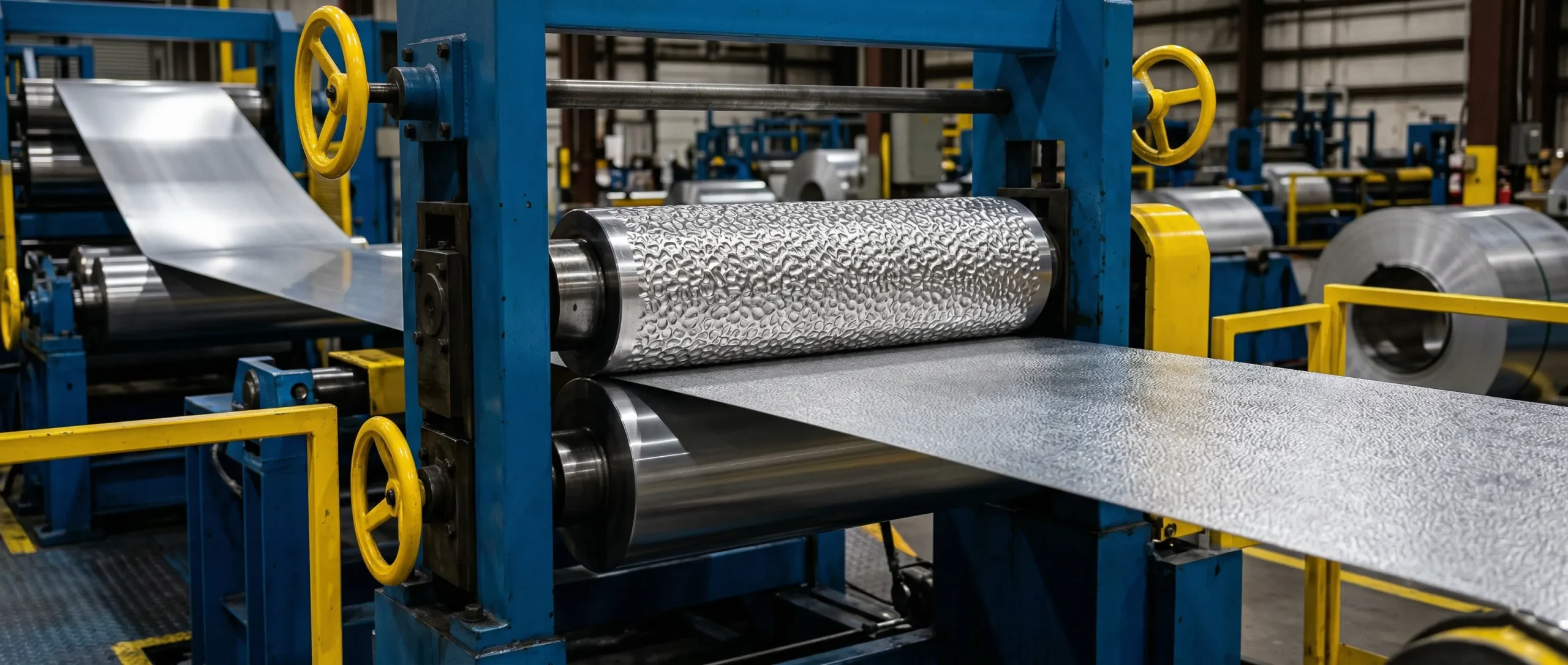

Embossed aluminum sheet starts as rolled coil. During embossing the strip runs between a roll engraved with the pattern and a backing roll, and the roll pressure transfers the texture into the metal. The relief is part of the aluminum, not a surface layer, so a coating applied afterward follows it.
Orbit casts, rolls and embosses on one site in Aqaba, Jordan, so alloy, gauge and pattern are set within one order. The pattern on this page is stucco, a fine, irregular texture. Other patterns are on request, and pattern, gauge and temper are confirmed per order.
| Form | What you receive | Suits |
|---|---|---|
| Embossed aluminum coil | Full-width or slit coil, up to 10 tonnes per coil, mill finish | Roll-forming, jacketing and laminating lines, and any process fed from an uncoiler |
| Embossed aluminum sheets | Coil cut to length to the sheet size you specify | Panels, appliance parts and shops that work from flat stock |
| Coated embossed coil | Coating applied over the texture, up to 1.60 mm thick and 1350 mm wide | Visible roofing, cladding and decorative work in a set color |
Sheets and narrower strip come from the same coil through slitting and cut-to-length. Sheet sizes and slit widths are confirmed per order.
Embossed metal or textured paint?
The two are easy to confuse on a drawing. Embossing changes the shape of the metal surface: the relief is in the aluminum, and on thin gauges it can add stiffness. A textured finish is a property of the paint film: the metal underneath stays flat and the texture comes from the coating, so it does not stiffen the sheet the way embossing does. If a specification only says "textured", ask which one is meant. The textured aluminum finish page covers the paint route, and the guide on what embossed means for aluminum explains the term in more depth.

What stucco embossing does
Embossing rolls a repeating texture into the coil surface.
- Can add stiffness: the pattern can add some stiffness to thin-gauge coil and visually masks oil-canning; the effect depends on pattern depth and gauge.
- Hides handling and surface marks: the broken surface disguises minor scratches and fingerprints that would be obvious on a smooth finish, valuable through fabrication, transport and service.
- Reduces glare: the matte, diffuse surface cuts reflection, which suits architectural and industrial settings.
- May provide mechanical keying for coatings and adhesives; confirm per laminate.
These properties make stucco embossed aluminum suited to insulation jacketing and pipe cladding, where a stiff, scuff-tolerant, non-reflective surface is needed. It is also used in appliance panels, roofing, and decorative work. Available in standard alloys, mill-finish or coated. Aluminum jacketing for thermal and acoustical insulation is covered by ASTM C1729, so check which jacketing specification your project names.
Embossed coil questions.
What is stucco-embossed aluminum?
Stucco-embossed aluminum is coil with a fine, irregular texture rolled into its surface. The pattern can add some stiffness and gives a matte, scuff-tolerant finish that hides minor handling marks.
Can stucco coil be painted or coated?
Yes. Stucco-embossed coil is supplied mill-finish or coated in Orbit's standard systems, with the coating applied over the embossed texture.
What is stucco-embossed aluminum used for?
It is common in insulation jacketing and pipe cladding, appliance panels, roofing and decorative work, wherever a stiff, non-reflective, scuff-tolerant surface is an advantage.
What alloys and thicknesses are available?
Stucco embossing is produced in Orbit's 1xxx, 3xxx and 5xxx alloys, from 0.20 to 2.00 mm thick (up to 1.60 mm where coated) and up to 1650 mm wide (1350 mm where coated). The pattern and gauge are confirmed per order.
Is embossed aluminum the same as textured paint?
No. Embossing presses the pattern into the metal itself and can add stiffness to thin gauges. A textured finish is a texture in the paint film over flat metal. The order should state which one is meant.
What is the minimum order?
The minimum order is 6.5 MT, plus or minus 10 percent.
Quality & compliance
Quality & compliance.
Certified management systems
Orbit's management systems are certified to ISO 9001 (quality), ISO 14001 (environment) and ISO 45001 (occupational health and safety).
Testing and documentation
Coated coil can be tested against ASTM or EN references by market, for salt spray, UV, T-bend, adhesion, gloss retention and color difference (delta E); test reports for a given order are available on request.
Documentation with the batch
Material certificates accompany every batch; test reports and ASTM or EN references are available on request. See quality & certifications.
Need textured coil?
Tell us the pattern, gauge and whether it is coated, we will quote it. Include your application, substrate (aluminum or steel), alloy, gauge, width, coating, color, quantity and destination. We respond to RFQs within one business day.
